Akiles Diamond-6 Corner Rounding Equipment
Akiles Diamond-6 Corner Rounding Equipment
Couldn't load pickup availability

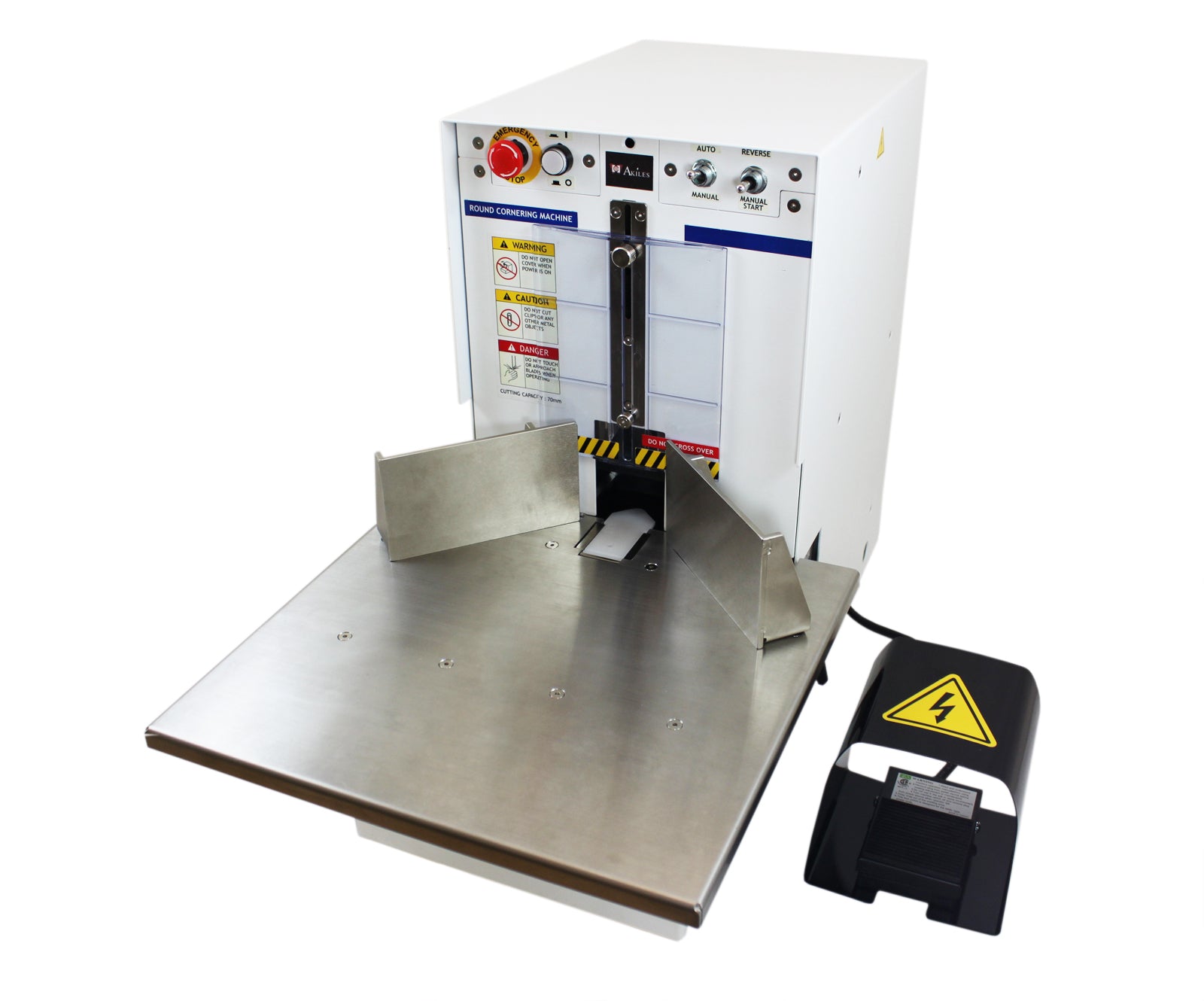

The Diamond 6 is a heavy duty electric corner rounding machine. It can round 6cm or up to 600 sheets of 20 lb paper. The Diamond 6 and 7 are the perfect machines for large volume jobs that require high productivity.
Description
• Cuts up to 2.38″ (60mm): The Diamond 6 cuts 2.38″ or 600 sheets of 20 lb paper.

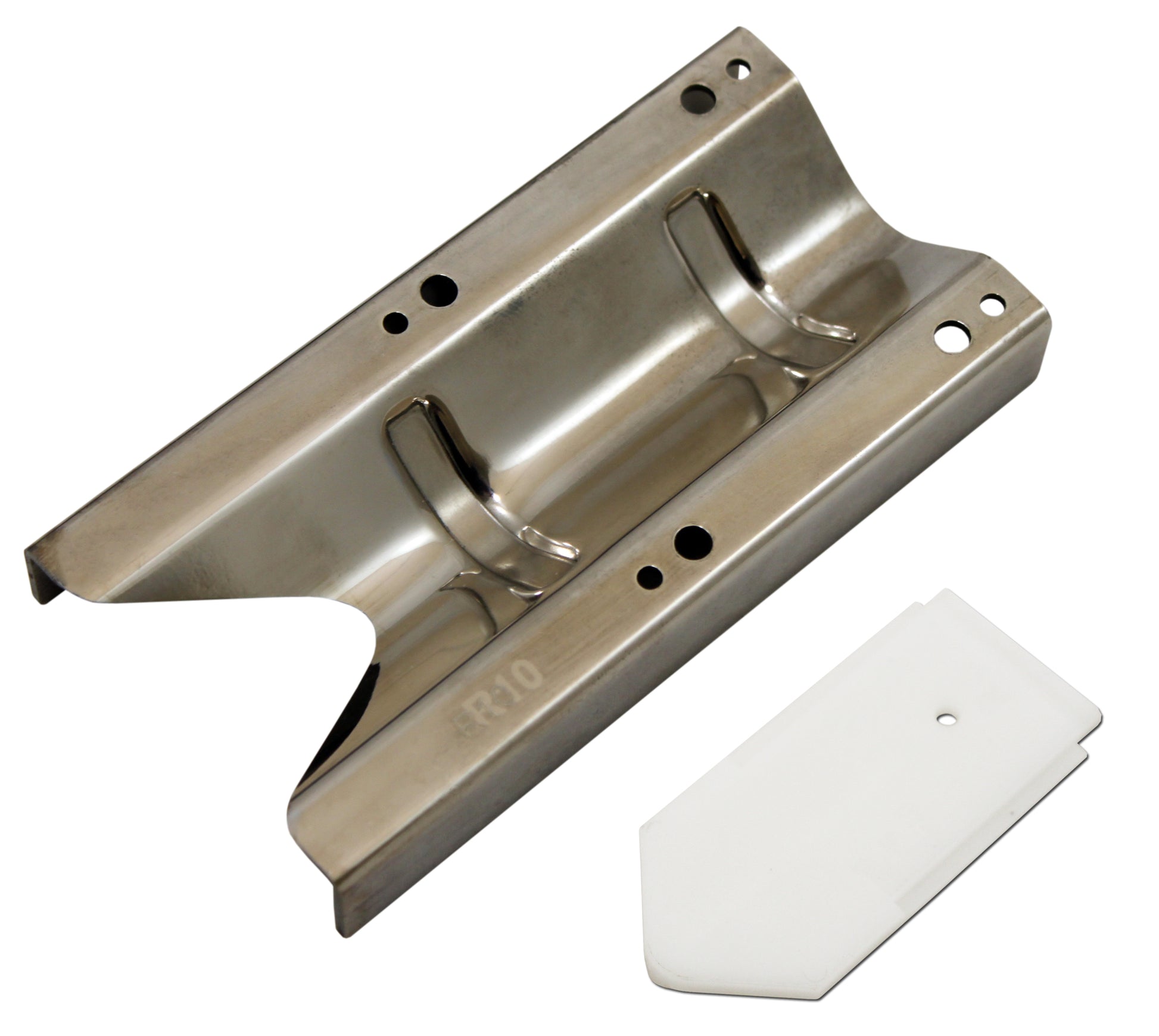

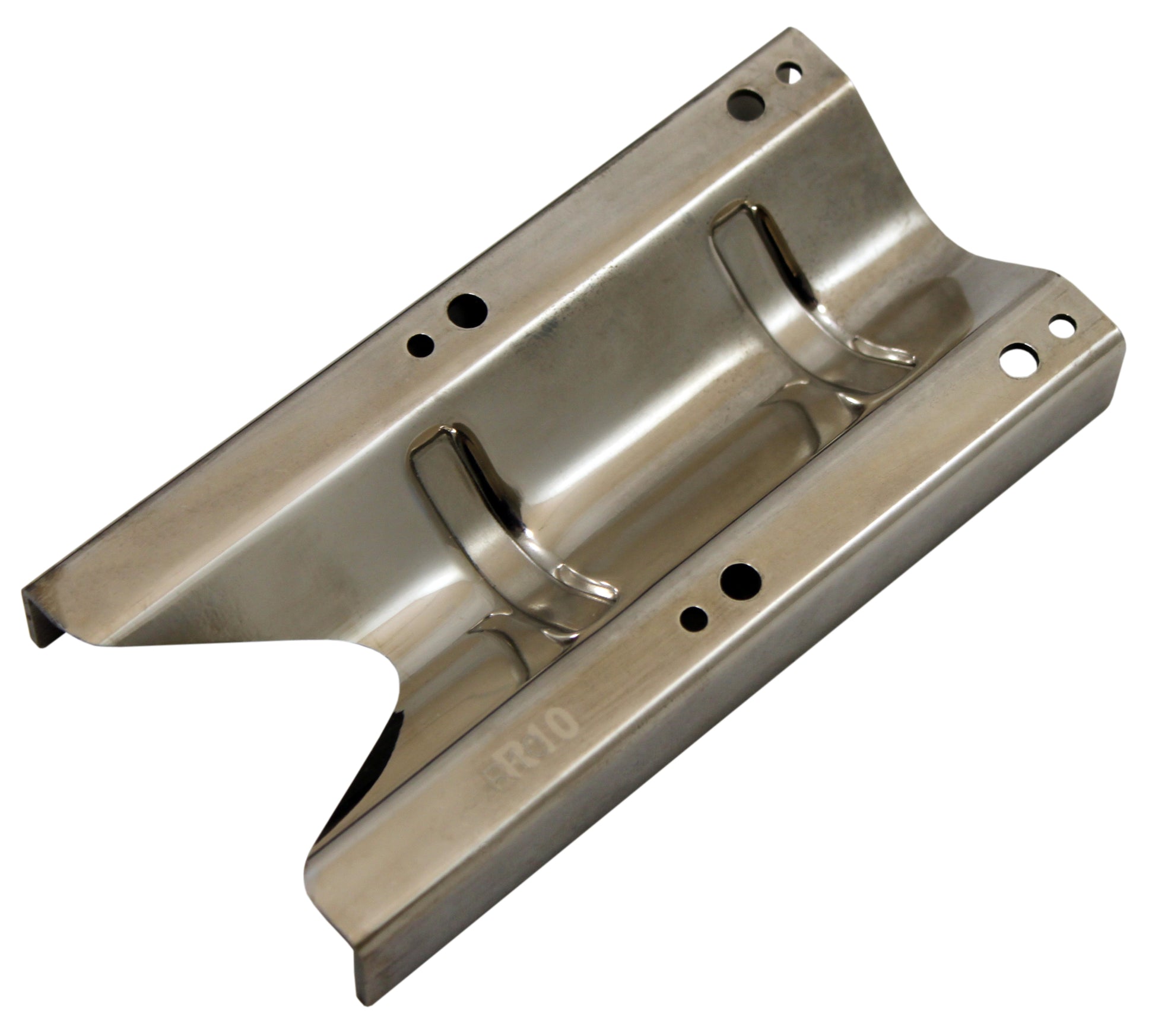

• 7 Interchangeable Dies: Available dies include 1/8″, 1/4″, 3/8″, 1/2″, 5/8″, Straight, and Slot Die.
• Protective Safety Cover: Keeps your fingers safely out of the cutting area during use.
• Patented Die Design: Patented upper die design & micro-adjustable lower die, allow for smooth and accurate cuts.
• Manual & Auto Mode: Switch between automatic foot pedal or manual hand operation with the flip of a switch.
• Tool & Scrap Box: Separate built-in storage bins for tools and corner scraps.
• Large Work Table
• Heavy-Duty Foot Pedal
• 1 Year Warranty
Specifications
| Model: | Diamond 6 | |
| Maximum Rounding Capacity: | 2-3/8″ (60mm) | |
| 600 Sheets (20 lb) | ||
| Maximum Slot Capacity: | 2mm | |
| Included Die: | 1/4″ | |
| Available Dies | 1/8″, 1/4″, 3/8″, Straight, and Half-Moon (1/2″ and 5/8″ are Special Order) | |
| Detachable Pressing Bar: | No | |
| Protective Safety Cover: | Included | |
| Work Table: | Included | |
| Storage & Trash Bin: | Included | |
| Motor: | 100 W | |
| Dimensions: | 24-5/8″ W x 12-5/8″ L x 17-1/2″ H | |
| Weight: | 104 lbs | |
| Warranty: | 1 Year | |
